1. All openings are approved for Positive and Neutral pressure unless otherwise noted.
2. All ratings apply to steel stud, woodstud, or masonry construction.
3. All ratings approved for category “A” and “B” doors with category “G” edge sealing.
4. Timely’s fire rated Metal “U” Insert is recomended for masonry installations. If wood sub- frame is used in place of Metal “U” Insert, it will be necessary to use fire rated drywall on both sides of wood to maintain fire rating.
5. Aluminum casing does not affect fire rating. Wood casing on perimeter does not affect fire rating. Wood casing on mullions limits fire rating to 20 min. Wood casing on perimeter with TA-8 casing on mullion does not affect fire rating. Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.

10′ – 1″

Max. Height:

10′ – 1″

up to 2′

Max. Height:

8′ – 11″

from 2′ up to 3′ **

Max. Height:

4′ – 6″ **

View minimum screw length here

All dimensions shown are inside dimensions – net door opening size.

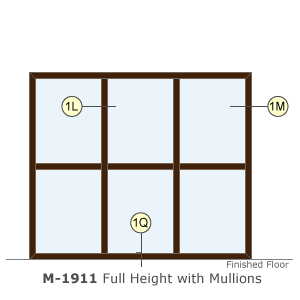

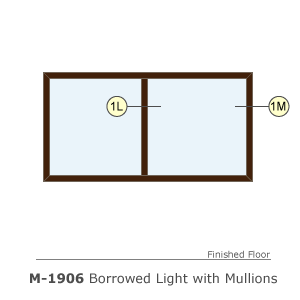

* Multiple Glass Areas can be created with Mullions. The only limitations are Max. Assembly Width and Height.

** For glass widths exceding 24″ the maximum glass area is 1296 sq. in. unless approved by local AHJ.

Distributors of Timely Frames may be approved to purchase labels and apply them to frames at their own facility. Intertek has set guidelines and a fee schedule for this program. Requirements and prices are available from Timely or Intertek.
